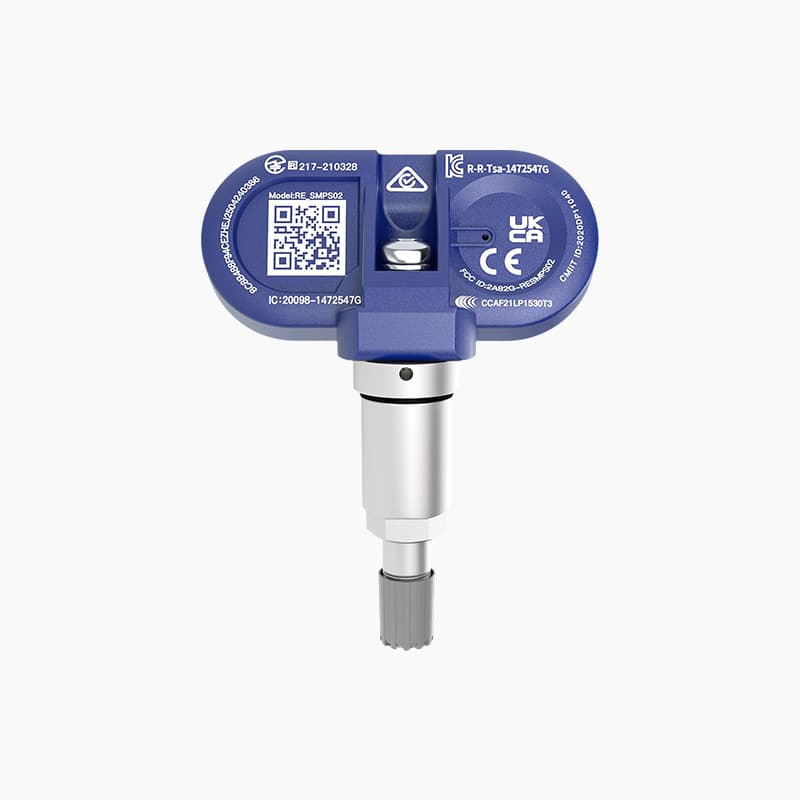

T10 Bluetooth BLE TPMS Sensor for Tesla

An internal Bluetooth Low Energy tire pressure sensor designed for compatible Tesla vehicles. It communicates directly with the vehicle for dashboard tire pressure monitoring and is available as a single sensor or a 4-sensor set.

Model:: T10

Category:: Tesla Tire Pressure Monitoring

Highlights
Specifications

Tesla BLE Compatibility

Designed for compatible Tesla vehicle architectures using Bluetooth Low Energy tire pressure monitoring. Verify the vehicle production date before ordering.

Automatic Signal Synchronization

After professional installation, compatible vehicles can recognize and pair the BLE sensors automatically during driving without a separate programming tool.

Dashboard Pressure Monitoring

Pressure information is transmitted directly to the compatible vehicle system for normal dashboard TPMS display and warning functions.

Automotive-Grade Internal Sensor

Internal wheel-mounted construction combines the sensor electronics, power cell, sealing components, and alloy valve stem assembly.

Wide Operating Temperature Range

Specified operating temperature range: -40°C to 125°C (-40°F to 257°F).

Professional Installation Recommended

The sensor mounts inside the wheel. Tire removal, correct valve installation, sealing, and factory-specified tightening procedures should be handled by a qualified tire technician.

Physical Specifications

Bare Unit Dimensions: 79.09 × 62.2 × 23.33 mm (3.11 × 2.45 × 0.92 in)

Bare Unit Weight: 45.9 g (1.62 oz)

Vehicle Compatibility

Model 3: Oct 2020–present

Model Y: Oct 2020–present

Model X: Oct 2021–present

Model S: Jun 2021–present

Communication

Protocol: Bluetooth Low Energy (BLE)

Display: Compatible Tesla vehicle dashboard

Programming Tool: Not normally required for compatible vehicles

Operating Specification

Sensor Type: Internal wheel-mounted TPMS

Operating Temperature: -40°C to 125°C (-40°F to 257°F)

Typical Battery Service Life: Up to 5 years under normal operating conditions

Reference OEM Numbers

1490701-01-B

1490701-01-C

1490750-01-A

1472547G

Package Contents

T10 BLE TPMS Sensor × 1 or × 4, according to the selected package

Pre-Assembled Valve Stem / Sealing Hardware × sensor quantity

Compatibility depends on vehicle model and production date. After installation, keep removed/deactivated old sensors away from the vehicle during initial synchronization to reduce possible signal interference.
