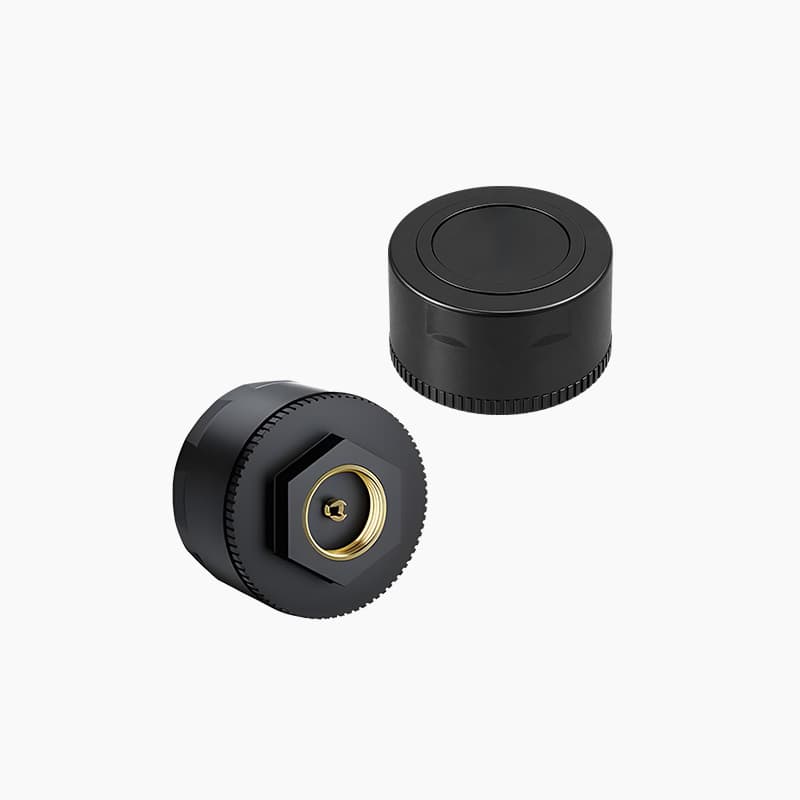

T06 Bluetooth Tire Pressure Sensor
- Model:
- T06
- Category:
- Bluetooth Tire Pressure Monitoring
Real-Time Pressure & Temperature Monitoring
Monitor tire pressure and temperature continuously for a clearer view of tire condition while riding or driving.
Multi-Function Alerts
Supports alerts for abnormal tire pressure, high temperature, air leakage, low sensor battery, and signal loss.
IP67 External Sensors
External valve-mounted sensors are designed for rain, dust, mud, and everyday all-weather use.
Easy Valve Installation
Screw-on external sensors install directly on compatible tire valves without removing the tire or programming the vehicle.
Low-Power Operation
Efficient low-power sensor design supports long-term monitoring. The sensor battery is pre-installed.
Stable Wireless Transmission
High-sensitivity sensing and wireless transmission provide responsive pressure and temperature data for everyday use.
iBar Smartphone Monitoring
T06 works with the iBar app for real-time pressure and temperature display, sensor status, and abnormal-condition alerts.
Flexible Multi-Wheel Setup
Choose a 2-, 3-, or 4-sensor set. Vehicles with more wheels can use multiple sets according to the required number of monitored tires.
Physical Specifications
Bare Unit Dimensions: Ø21.23 × 15.96 mm (Ø0.84 × 0.63 in)
Bare Unit Weight: 9.7 g (0.34 oz)
Monitoring
Data: Tire pressure + tire temperature
Sensor Type: External valve-mounted sensor
Alerts: Low / high pressure, high temperature, leakage, low battery, signal loss
Environmental Design
Water & Dust Resistance: IP67
Battery: Pre-installed in each sensor
Installation: Screw-on external sensor
Wireless & App
Wireless: Bluetooth
App: iBar
Platforms: iPhone + Android
App Functions: Pressure / temperature display, warnings, sensor binding, warning logs
Set Configuration
Minimum Order: 2 sensors
Sensors per Set: 2 / 3 / 4
More than 4 Wheels: Use multiple sets
Package Contents
T06 TPMS Sensors × 2–4, according to the selected set
Anti-Theft Nuts × sensor quantity
Installation Wrench × 1 per set
Pre-Installed Sensor Batteries
User Manual × 1
iBar App
Use iBar with T06 sensors to receive tire pressure information and abnormal warnings through your phone. The app supports multiple vehicle layouts, sensor binding, and warning records.
