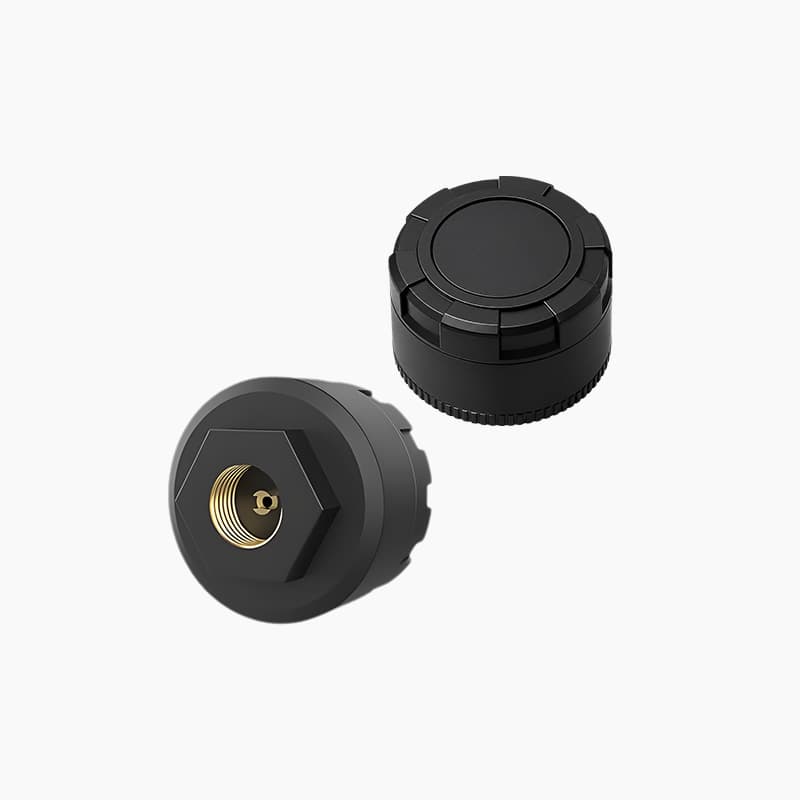

T05 Bluetooth Tire Pressure Sensor

A Bluetooth 5.0 external TPMS solution that sends real-time tire pressure and temperature information directly to the HRTpms smartphone app. Sets start from 2 sensors and can be combined for vehicles with more wheels.

Model:: T05

Category:: Bluetooth Tire Pressure Monitoring

Real-Time Pressure & Temperature Monitoring

Monitor tire pressure and temperature continuously for a clearer view of tire condition while riding or driving.

Multi-Function Alerts

Supports alerts for abnormal tire pressure, high temperature, air leakage, low sensor battery, and signal loss.

IP67 External Sensors

External valve-mounted sensors are designed for rain, dust, mud, and everyday all-weather use.

Easy Valve Installation

Screw-on external sensors install directly on compatible tire valves without removing the tire or programming the vehicle.

Low-Power Operation

Efficient low-power sensor design supports long-term monitoring. The sensor battery is pre-installed.

Stable Wireless Transmission

High-sensitivity sensing and wireless transmission provide responsive pressure and temperature data for everyday use.

HRTpms Smartphone Monitoring

No separate display is required. View tire status and receive abnormal-condition alerts directly in the HRTpms app.

Flexible Multi-Wheel Setup

Each set contains 2 to 4 sensors. For vehicles requiring more than 4 sensors, purchase multiple sets to build the required wheel configuration.

Physical Specifications

Bare Unit Dimensions: Ø21.05 × 14.39 mm (Ø0.83 × 0.57 in)

Bare Unit Weight: 9.4 g (0.33 oz)

Monitoring

Data: Tire pressure + tire temperature

Sensor Type: External valve-mounted sensor

Alerts: Low / high pressure, high temperature, leakage, low battery, signal loss

Environmental Design

Water & Dust Resistance: IP67

Battery: Pre-installed in each sensor

Installation: Screw-on external sensor

Wireless & App

Wireless: Bluetooth 5.0

App: HRTpms

Platforms: iPhone + Android

Pressure Units: PSI / BAR / KPA

Temperature Units: °C / °F

Set Configuration

Minimum Order: 2 sensors

Sensors per Set: 2 / 3 / 4

More than 4 Wheels: Use multiple sets

Package Contents

T05 TPMS Sensors × 2–4, according to the selected set

Anti-Theft Nuts × sensor quantity

Installation Wrench × 1 per set

Pre-Installed Sensor Batteries

User Manual × 1

For multi-wheel vehicles, additional sets can be purchased as needed. Package accessories are supplied per set.

HRTpms App

Use HRTpms to view real-time tire pressure and temperature, receive abnormal-condition warnings, switch pressure and temperature units, and configure alarm thresholds.
