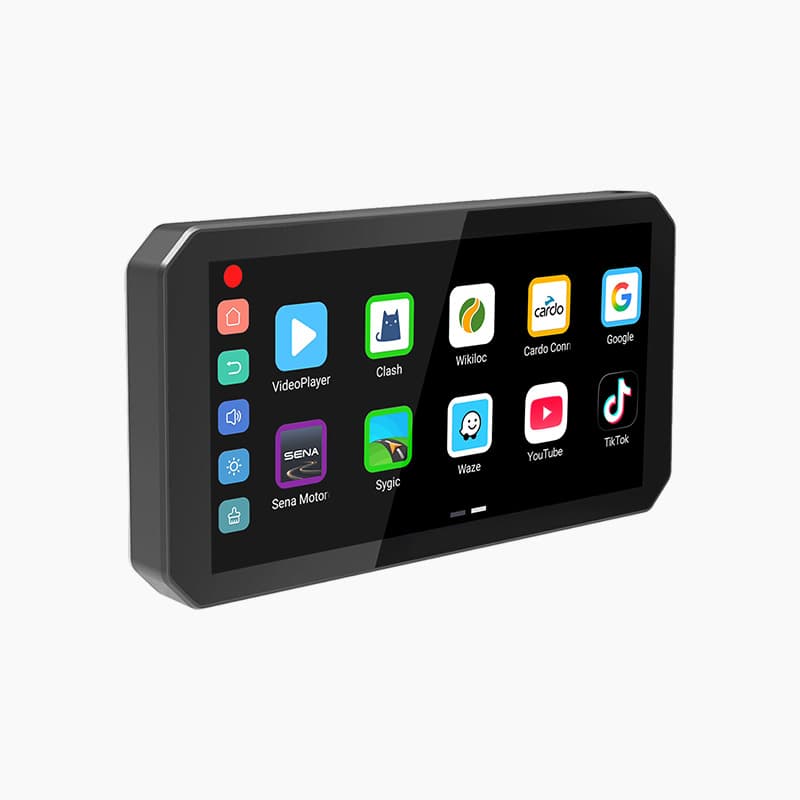

E20 6-Inch Android Motorcycle Smart Display
- Model:
- E20
- Category:
- Motorcycle Displays
Independent Android System
Run Android apps directly on the display without needing a connected phone.
Octa-Core Performance
Octa-core A53 2.0GHz processor with 4GB RAM and 64GB storage supports local navigation, music, video, and compatible third-party apps.
Wireless CarPlay & Android Auto
Switch between the native Android system and wireless phone integration as needed.
4G + Wi-Fi + Bluetooth
Insert a SIM card for independent cellular access and use Wi-Fi or Bluetooth for additional connectivity.
Dual 1080P DVR Cameras
Front and rear 1080P cameras record riding footage at 30fps.
Built-In TPMS
Monitor front and rear tire pressure and temperature directly on the display.
Wired Handlebar Control
Use the wired control together with touchscreen and voice operation for safer adjustment while riding.
OTA Firmware Updates
Supports online firmware updates for system optimization and future software improvements.
Physical Specifications
Bare Unit Dimensions: 117 × 100 × 47.96 mm (4.61 × 3.94 × 1.89 in)
Bare Unit Weight: 361.5 g (12.75 oz)
Power Connector: 3-pin Female
System
Operating System: Android
CPU: Octa-core A53 2.0GHz
Memory: 4GB RAM
Storage: 64GB
OTA Updates: Supported
Connectivity
4G: Supported via SIM
Wi-Fi: Supported
Bluetooth: Supported
Apple CarPlay: Wireless
Android Auto: Wireless
Cameras
Front Camera: 1080P @ 30fps
Rear Camera: 1080P @ 30fps
Recording Resolution: 1920 × 1080
Control & TPMS
Control: Touchscreen + wired handlebar control + voice control
TPMS: Front and rear tire pressure + temperature monitoring
Environmental
Power Input: 12V motorcycle power
Operating Temperature: -20°C to 70°C
Package Contents
Motorcycle Display Unit × 1
Mounting Bracket × 1
Ball Head Component × 1
Installation Hardware: mini screwdriver, hex wrench
3-pin Male to USB-A Male Power Cable × 1
3-pin Male to Red/Black Power Cable × 1
Front Camera (4-pin Female) × 1
Rear Camera (4-pin Female) × 1
Wired Controller (6-pin Female) × 1
TPMS Sensor Kit (2 sensors) × 1
User Manual × 1
